motor capacitor

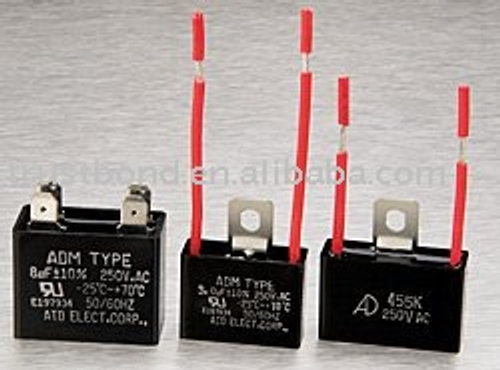

Metallized Polyester Film Capacitor - AUM Type
#AUM#Type#capacitor#film#motor#IC#TRUSTBAND#現貨商
| Metallized Polyester Film Capacitor - AUM Type |
| Introduction: |
| The capacitor are non-inductively wound with a metallized polyester fim dielectric/electrode, encapsulated in flame retardant(UL94, V-O) plastic case(PBT) and epoxy resib end seal. |
| * Used in fans, air-conditioners, refrigerators,Power Systems (UPS),office equipment, mercury lamps, fluorescent lamps and business machines. |
| Leads Type: |
| A: Terminals |
| S:Tinned copper clad steel wire radial leads. |
| W:Soldering terminals. |
| P:UL 1015 or UL1007 stranded PVC insulation wire. |
| Specifications and dimension: |
| * Base Specification: |
| (a)IEC 33 (C0)77:Used for AC motor application |
| (b)JIS C 4908:Used for electrical apparatus |
| (C)CNS 4327:Used for electrical apparatus |
| * Climate Category:In accordance with DIN40040 HSF |
| (a)H=Minimum Limit Temperature:-25°C |
| (b)S=Maximum Limit Temperature:+70°C |
| (c)F=Humidity Category:Average relative humidity<=75%,95% for 30 days per year,continuously; 85% for the remaining days,occasionally. |
| * Rated Voltage:100,180,250, 300, 350, 400, 450 VAC |
| * Capacitance Range:0.5μ F ~ 35 μF |
| * Capacitance Tolerance: |
| U(- 5%~ +10%), J ( ± 5 % ), K (± 10 % ) |
| * Withstand Voltage: |
| (a)Between Terminals:R.V. ×√2× 175% for 1 minuite(VDC). |
| (b)Between Terminals and Case:2×ated voltage +1000V(1500v Min) for 60s.This test occasional self-healing breakdown are allowed. |
| * Disssipation Factor: |
| 0.35% at 200V.AC, 60Hz and 25°C |
| 1.0% at 200V.AC, 1KHz and 25°C |
| * Insulation Resistance: |
| (a)Between Terminals:Insulation resistance:more than 1,000 Mohm μF |
| (b)Between Terminals and Case:>=10 MΩ Measured at 100V.AC, 60s. And 25°C |
| If you have any inquiries, please don't hesitate to contact with TRUSTBOND. |
-
