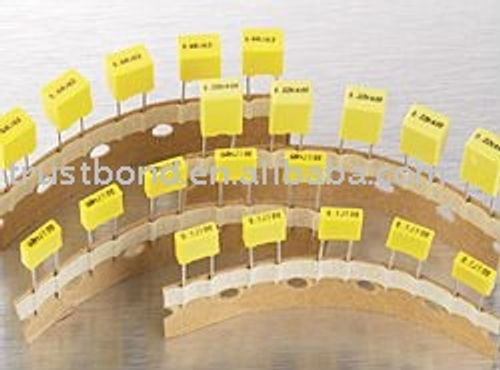

Metallized Polyester Film Capacitor - MEC(P=5) Type
#AD#MEC#capacitor#mini#box#IC#TRUSTBAND#現貨商
| Metallized Polyester Film Capacitor - MEC(P=5) Type |
| Introduction: |
| 1. SPACE-SAVING MINTURE SIZE. |
| 2. NON-INDUCTIVE CONSTRUCTION. |
| 3. SELF-HEALING PROPERTY. |
| 4. FLAME-RETARDANT PLASTIC CASE AND EPOXY PLIANCE WITH UL94V-0) |
| 5. HIGH-MOISTURE RESISTANCE. |
| Specifications: |
| 1. OPERATING TEMPERATURE!-40°C ~ + 85°C |
| 2.CAPACITANCE:RANGE:0.01~10Uf |
| 3.CAPACITANCE TOLERANCE: ±1%(F),± 2%(G),± 5%(J), ±10%(K) |
| 4.RATED VOLTAGE: 100VDC, 250VDC, 400VDC, 630VDC. |
| 5.DISSIPATION FACTOR: 0.1%MAX AT 1KHz, 25°C |
| 6.INSULATION RESISTANCE: |
| >30000MΩ (C≤0.33uF) |
| >10000MΩ / µF (C>0.33µF) AT 25°C. |
-
