SNUBBER CAPACITORS

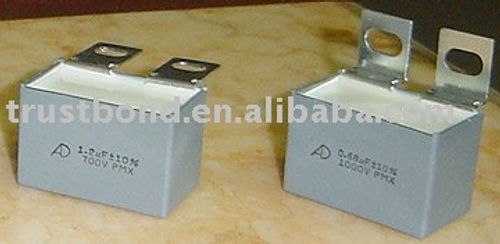

I.G.B.T SNUBBER CAPACITORS
#AD#ICS#IC#capacitor#SNUBBER#CAPACITORS#TRUSTBAND#現貨商
| I.G.B.T SNUBBER CAPACITORS |
| Main applications introduction : |
| Switching capacitor for resonant, Industrial motor speed controls, Induction heaters, high frequency and High current applications |
| Dielec tric |
| Polypropylene electrodes vacuum deposited Metal layers |
| Coating |
| Solvent resistant plastic case with resin sealing (UL 94 V- 0), Flame retardant execution |
| Construction |
| Extended metallized film (Refer to general technical information) |
| Terminals |
| Tinned copper lugs(lead-free) for screw fixing (please refer to article table) |
| Installation |
| Whatever position assuring correct heat dissipation Arrangement of many components with box wallsin Contact not admittd; suggested minimum distance between Between side by side elements>-1/8 of the box thickness (B Size).Box with Lugs terminals must be free to correctly dissipate From all body faces |
| Reference standard |
| IEC 61071,IEC60068, Rohs compliant |
| Climatic category |
| 40/85/56(IEC60068/1), GPD(DIN40040) |
| Operating temperature range(case) |
| -40°C...+85°(100° observing voltage and current de-rating) |
| Max. permissible ambient temperature |
| +70°, operation at rated power, current, voltage and natural Cooling(+85°) |
| Rated capacitance(Cr) |
| 1.5uF to 60uF Refer to article table |
| Capacitance tolerance(at 1kHz) |
| +-10% (code=K), plusmn;5%(code=J), Other tolerances upon request |
| Capacitance temperature coefficient |
| Refer to graphs in general technical information |
| Long term stability (at 1kHz) |
| Capacitance variation-<±1% after a period of years at standard Environmental conditions |
| Rated voltage(Ur) |
| 250, 330, 400, 600, 700 Vdc |
| If you have any inquiry, please don't hesitate to contact with Trustbond Technology Crop., |
-
