真空幫浦 SR-800
SR-800[Principleofoperation]Whentherotors,whicharefixedtoshafts,arerotated,aspaceemergesinsidethepum
#sr#11#電動機#冷卻水#ps1#壓力#排氣#真空幫浦#幫浦#真空
SR-800
[Principle of operation]
When the rotors, which are fixed to shafts, are rotated, a space emerges inside the pump cylinder and its volume gradually increases. As a result, outside gas is introduced into the space in the cylinder through the suction port.
As the rotors are further rotated, the gas in the spaces between the cylinder and the piston, and between the cylinder and the vanes, is moved to another space, where the gas is compressed and then exhausted through the exhaust valve into the oil tank
[Principle of operation]
When the rotors, which are fixed to shafts, are rotated, a space emerges inside the pump cylinder and its volume gradually increases. As a result, outside gas is introduced into the space in the cylinder through the suction port.
As the rotors are further rotated, the gas in the spaces between the cylinder and the piston, and between the cylinder and the vanes, is moved to another space, where the gas is compressed and then exhausted through the exhaust valve into the oil tank
|
型式 |
設計排氣速度 |
到達壓力PA |
電動機
KW |
油量
L |
吸入口徑 |
排氣
口徑 |
AXBXC
尺寸mm |
重量
Kg |
冷卻水
L/min |
|
SR-800 |
803 |
6.7X10-2 |
1.5 |
3 |
VG50 |
RP1 2/1
(PS1 1/2) |
730X400X600 |
105 |
|
|
SR-1500B |
1540 |
6.7X10-2 |
2.2 |
4 |
VG50 |
RP1 2/1
(PS1 1/2) |
820X550X750 |
105 |
|
|
SR-25BII |
2520 |
6.7X10-2 |
3.7 |
5 |
VG80 |
RP2(PS2) |
677X552X870 |
260 |
5 |
|
SR-37BII |
3740 |
6.7X10-2 |

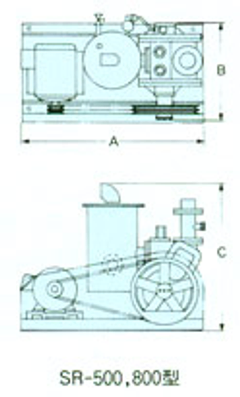

 比例圖  SR型式
