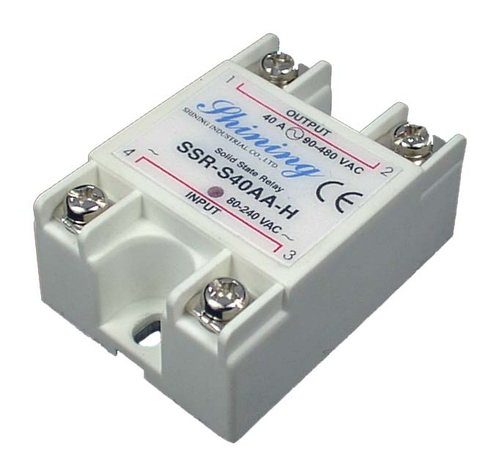

享曆 SSR-S40AA-H 單相固態繼電器

SSR-S40AA-H 單相固態繼電器

1. 輸入控制電壓: 80~240 VAC
2. 最大負載電流: 40A
3. 輸出負載電壓: 90~480 VAC
4. 最低破壞電壓: 600V
5. 切換型式: 零點觸發
6. 隔離阻抗: 50MΩ/500 VDC
7. 可安裝固定在面板上
8. LED燈狀態顯示
9. 附透明防塵蓋或可另外提供保護上蓋供選購
10. 經UL 與 cUL 認可. File No. E301692, 產品符合CE規定
11. 可廣氾應用於各種接線場合, 例如: 配電盤, 控制面板, 變壓器, 機械設備, 不斷線系統, 發電機組, 冷凍空調, 電池組, 照明設備, 船舶飛機等等
12. 網址 : http://www.shining.com.tw/2CT/CT_ssr_single_phase_ac_to_ac.htm

SSR-S40AA-H Single Phase Solid State Relay

• Item number: SSR-S40AA-H

• Output Load Current: 40A

• Output Load Voltage Range: 90~480VAC

• Operate Input Current: 80~240VAC

• 600V Transient Capability

• Low EMI/EFI & Surge by zero cross trigger control.

• High Isolation over than 50MΩ/500VDC

•Panel Mounting

• LED Input status Indicator

• Integrated with removable tinger-proof cover SSR-S-CV • Fast reaction, high reliability and long life

• No switching speaks, no noise, and no contact points.

• Excellent for switching control of switchboard panel, heaters, printers, machines, UPS

• UL and cUL Approval. File No. E301692. CE Compliant.

• Packing: 100pcs/ctn, N.W. :11.6kgs /carton
