Rubber Sole Press
LC-0858 Automatic Drawplate HydraulicPress Machine (自動拉模橡膠底油壓機) OPERATIONAL DESIGN 1.

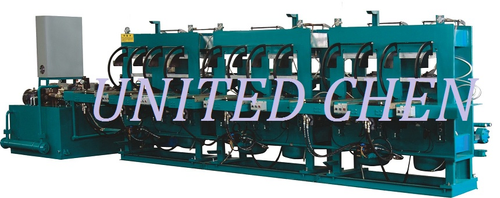

LC-0858 Automatic Drawplate Hydraulic Press Machine
(自動拉模橡膠底油壓機)
OPERATIONAL DESIGN
1. One person can simultaneously operate multi-stations to save labor cost.
2. Automatically enter or exit sliding mold, it is convenient to take out finished-product. The operation is easy, even female operator can be competent the job.
3. Double sides operation, featuring simultaneously inter-lock function, the operation is safe.
4. Fix up low mold to the sliding plate, it can be produced, the speed of mold change is quick.
5. Independently operate and control each station. According to the requirement of manufacture, requirement of maintenance, to decide station numbers. And then it can save electricity.
Specifications:
|
LC-0858 Automatic Drawplate Hydraulic Press Machine |
|
|
Motor |
20 KW |
|
Main cylinder diameter |
300 mm |
|
Station number of machine |
6 Stations |
|
Die clamp strength |
150 Tons |
|
Heat plate size |
470×470 mm |
|
Number of heat plate(single station) |
3 blocks |
|
Total power |
25 KW |
|
Height of mold |
40-170 mm |
|
Maximum mold-opening distance |
180 mm |
|
Manufacture mold (single station) |
2 Sets |
|
Weight of machine |
14 Tons |
|
Machine size (L×W×H) |
7500×2350×1800mm |
-
