16埠攝影機信號線避雷器

　　 Application for protects equipmen

#避雷器#雷射標示器#壓力開關#譯碼器#荷重元#區域光幕#感測器

Application for protects equipment from high voltage surges such as lightning strikes. UL grounding requirements for coaxial cable offer protection from hazardous voltages that may occur on the shielding. Because of the physical length of ground wires, UL grounding systems may appear as an open circuit to lightning caused, high frequency surges and provide no protection from these surges getting into a home and destroying CATV converters, TV sets, VCR, Camera etc.

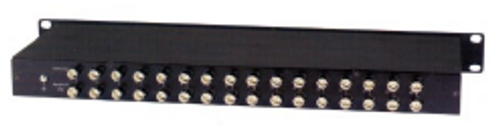

16埠攝影機信號線避雷器


Surge Protection Attack Time	1ns
Maximum Surge Current	4KV
Surge Life	300 surges of 100Amps
Normal Resistance Across Coax	10,000MΩ
Surge Resistance	Approx. OΩ
BAND PASS	0~1 GHz
Power Passing Capability	130V AC/DC, 65 Vrms at Amps
Peak Pulse Power	1500 Watts
Insertion Loss	Less than 0.2 dB
Return Loss (75 ohms)	16dB
Connectors	BNC
Dimensions W x H x D mm	482 x 170 x 44mm
Weight g	1200g
