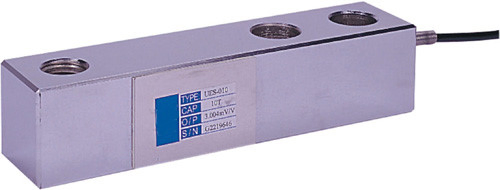

荷重元LSU-ES系列
1. LSU-ES型傳感器的秤量從0.25t到10t
|
|
|
|
1. LSU-ES型傳感器的秤量從0.25t到10t 2. 全合金鋼結構，密封緊密，可適用於複雜的工業環境 3. 可用在超薄型地磅及其他秤重設備 |
|
|
|
||||||
|
型號 Type |
LSU-ES-0.25 | LSU-ES-0.5 | LSU-ES-1 | LSU-ES-2.5 | LSU-ES-5 | LSU-ES-10 |
|
額定載荷 Maximum capacity |
0.25t | 0.5t | 1t | 2.5t | 5t | 10t |
|
彈性體材質 Material |
Alloy steel | |||||
|
推荐激勵電壓 Recommended excitation |
10V | |||||
|
最大激勵電壓 Maximum Excitation |
15V | |||||
|
輸出靈敏度 Rated output (=RO) |
3 ± 0.025 mV/V | |||||
|
零點範圍 Zero balance |
± 0.030%RO | |||||
|
蠕變(20min) Creep error (20 minutes) |
± 0.03%RO | |||||
|
重復性 Repeatability |
± 0.02%RO | |||||
|
輸入阻抗 Repeatability |
390 ± 3Ω | |||||
|
輸出阻抗 Output resistance |
350 ± 3Ω | |||||
|
溫度補償範圍 Compensated temperature range |
-10 ~ 40℃ | |||||
|
允許使用溫度範圍 Operating temperature range |
-20 ~ 60℃ | |||||
|
溫度對輸出靈敏度的影響 Temperature effect on output |
0.02%Load/10℃ | |||||
|
溫度對零點輸出的影響 Temperature effect on zero |
0.02%RO/10℃ | |||||
|
安全過載範圍 Safe load limit |
150%of rat. cap. | |||||
|
極限過載範圍 Ultimate load |
200%of rat. cap. | |||||
|
密封 Sealing |
Complete hermetic sealing; cable entry sealed by metal header | |||||
|
防護等級 Protection class |
IP 66 | |||||
|
|
|
|
