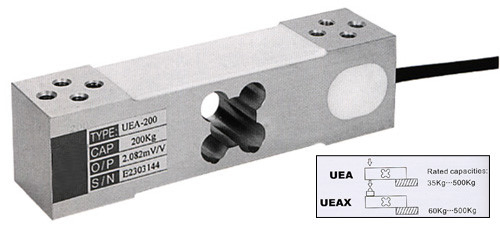

荷重元LSU-EA系列
1. LSU-EA和LSU-EAX型傳感器的秤量從35Kg到500
|
|
|
|
1. LSU-EA和LSU-EAX型傳感器的秤量從35Kg到500Kg 2. 鋁合金結構，密封緊密，可適用於多種的秤量設備。 |
|
|
|
||||||
|
型號 Type |
LSU-EA35 | LSU-EA60 | LSU-EA100 | LSU-EA200 | LSU-EA300 | LSU-EA500 |
|
額定載荷 Maximum capacity |
35kg | 60kg | 100kg | 200kg | 300kg | 500kg |
|
彈性體材質 Material |
Aluminum | |||||
|
推荐激勵電壓 Recommended excitation |
10V | |||||
|
最大激勵電壓 Maximum Excitation |
15V | |||||
|
輸出靈敏度 Rated output (=RO) |
2 ± 0.05 mV/V | |||||
|
零點範圍 Zero balance |
± 0.030%RO | |||||
|
蠕變(20min) Creep error (20 minutes) |
± 0.025%RO | |||||
|
重復性 Repeatability |
± 0.02%RO | |||||
|
輸入阻抗 Repeatability |
402 ± 3Ω | |||||
|
輸出阻抗 Output resistance |
350 ± 3Ω | |||||
|
溫度補償範圍 Compensated temperature range |
-10 ~ 40℃ | |||||
|
允許使用溫度範圍 Operating temperature range |
-20 ~ 60℃ | |||||
|
溫度對輸出靈敏度的影響 Temperature effect on output |
0.02%Load/10℃ | |||||
|
溫度對零點輸出的影響 Temperature effect on zero |
0.02%RO/10℃ | |||||
|
安全過載範圍 Safe load limit |
150%of rat. cap. | |||||
|
極限過載範圍 Ultimate load |
200%of rat. cap. | |||||
|
密封 Sealing |
Potted | |||||
|
防護等級 Protection class |
IP 66 | |||||
|
最大秤盤尺寸 Maximum platform size |
