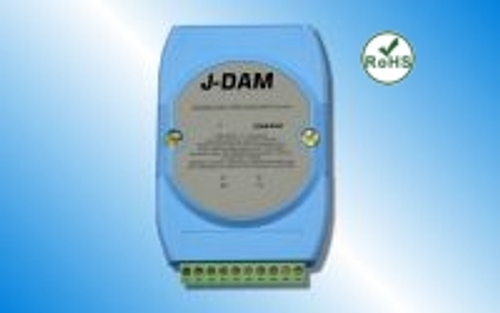

JDAM-9530遠端控制模組

Features USB 1.1 Comp

#RS-232#RS-485#RS#BPS#USB#CTS#power

Features
	USB 1.1 Compliant	RS-232 RTS & CTS signals support
	Auto data flow direction detection on RS485	Minimum 3000Vdc isolation protection
	Full-duplex RS-232/RS-422 support	Transient suppression on RS-485 data lines
	Automatically switch USB signal to RS-232/RS-422 or RS-485(jumperless)
	Auto baud rate detection up to 115.2Kbps	Driver support for Windows 95/98/ME/2000/XP, Linux
	Reserved space for termination resistors	Power requirement : USB bus power
	Power and activity indicator for troubleshooting	Mounts easily on DIN-rail or panel
Specifications
	USB Controller : USB 1.1	USB interface connector : USB type B
	Isolation Side : RS-232/422/485
	Converted signals : RS-232/RS-422 or RS-485 Auto switching(jumperless)
	Handshake : RS-232 RTS & CTS	Data activity : LED indicator
	Auto Baud rate(bps) : 300 ~115.2K BPS	Isolation voltage : 3000Vdc
	RS-232/RS-422/RS-485 connector : plug-in screw terminal
	Accessories(Supplied) : NYLON DIN-rail Mounting Adapter SECC Panel Mounting Bracket
	Plug-in screw terminal wiring : Accepts AWG 1-#12 to #22 (0.5 to 2.5 mm) wires
	Power requirement : USB bus power	Case : ABS with captive mounting hardware
	Power consumption : 0.65W
