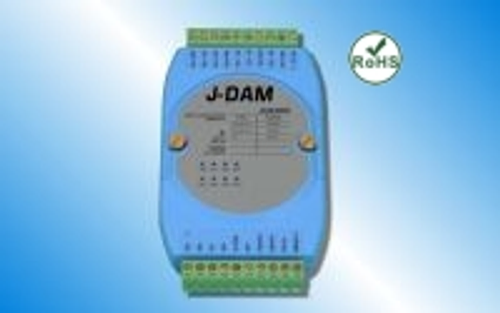

JDAM-9060D遠端控制模組

Specifications

Interface : RS-485, 2 wires

logical level 0 : +1V Max

Speed(bps) : 1200, 2400, 4800, 9600, 19.2K, 38.4K, 115.2K

.logical level 1 : +3.5V ~ +24V

Relay output channels : 4 relay output channels

Input impedance : 3K ohms

SPST (form A) channels : 2(N.O.)

Isolation Voltage : 3,750Vrms

SPDT (form C) channels : 2(N.O./N.C.)

Input counter : Counting pulse from channel 4 input

Output mode : Dry contact output

counter frequency : 100Hz Max

AC contact rating : 0.6A @125Vac; 0.3A @250Vac

Length : 16-bit(0~65535)

DC contact rating : 2A @30Vdc; 0.6A @110Vdc

Status indicator : 8 input status LED displays

Relay on time(typical) : 3msec

Max power dissipation : 1.2W

Relay off time(typical) : 1msec

Insulation resistance : 1000M ohms at 500Vdc

Input channels  : 4 isolated input channels with common power

Power requirement : 10Vdc ~ 30Vdc
