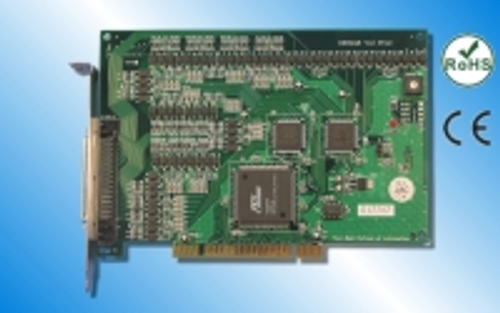

DIO-3248數位輸出入控制卡

Applications

Accept : P.B. / M.S. / EMG. / Contact - Start / Stop / Limit switch / sensor

 As I/O of S/W PLC Controller

Features

State transition interrupt at DI0 ~ DI31

No output transition during start-up

48 isolated DI and 16 isolated DO channels

Output status readback

High voltage isolation on all isolated channel(2500Vac)

External triggered interrupt(on IN0, IN1)

DIN rail wiring board with different output options

Software key function

Specifications (With Matched Wiring Board)

Main Card -- Digital Input

Input : 48 photo-isolated

OFF state : 8Vdc(min) 3mA(max)

ON state : 2.8Vdc(max) 4.5mA(min)

Switching speed : 2.2KHz max.(with on board debounce circuit)

Main Card -- Digital Output

Output : 16 photo-isolated

Output rating : 3A @250Vac, 30Vdc(Relay)

Output range : Open drain 0 ~ 100Vdc

                             1A @120Vdc(NMOS)

Switching speed : 20KHz(max)(MOS out only)

                             1A @24Vdc(PMOS)

Main Card -- General

Card ID : 4-bit

Operation temperature : 0 to +70 degree C

Insulation resistance : 100M Ohm(min) at 1000Vdc

Storage temperature : -20 to +80 degree C

Isolation voltage : 2500Vac 1Min

Operation humidity : 5~95% RH, non-condensing

Connecto r : One 68-pin SCSI II female connector

Dimensions  : 175(W)*122(H) mm, 6.89(W)*4.8(H) in

DIN rail mounted wiring board

Power Requiremant : 24Vdc ± 4Vdc

Input : 48 with LED indicator, 8 digit per group with Green LED at first digit

Output :

     DIO-3248DIN(N) : 16 NMOS(Sink 1A @120Vdc) with LED indicator, 8 digit per group with Green LED at first digit

     DIO-3248DIN(P) : 16 PMOS(Source 1A @24Vdc) with LED indicator, 8 digit per group with Green LED at first digit

     DIO-3248DIN(R) : 16 Relay( 3A @250Vac, 3A @30Vdc) with LED indicator, 8 digit per group with Green LED at first digit

Power indicator : Red LED

Operation temperature : 0 to 70 degree C

Connector : One 68-pin SCSI II female connector

Operation humidity : 5~95% RH, non-condensing

Dimension :  DIO-3248DIN(N) : 121(W)*159(L)*47(H) mm, 4.76(W)*6.26(L)*1.85(H) in

                          DIO-3248DIN(P)/(R) : 121(W)*159(L)*45(H) mm, 4.76(W)*6.26(L)*1.77(H) in
