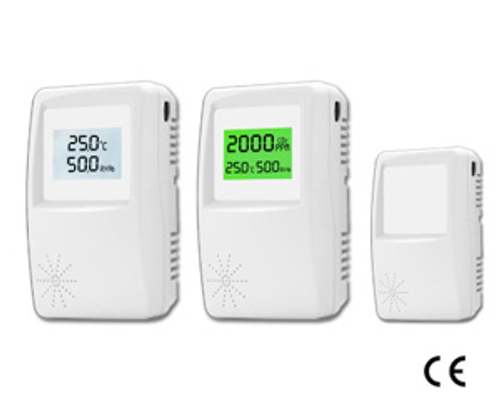

VT2000 HVAC
CO2 Measuring Method : NDIR Sensor & Temperature / Humidity TRANSMITTER
#CO2#TEMP#HUMI#HVAC#VT2000#HUMIDITY
CO2 Measuring Method : NDIR Sensor
Temperature / Humidity sensing element : CMOSens sensor
Retransmission Output : 4~20mA or 0~10V
Communication Output : RS485 MODBUS RTU (option)
Configured using a PC with free software and interface
cable (option)
Process value offset adjustable (available on CO2 with Temperature and Humidity display type / option)
Digital keypad to adjust output calibration
Backlight LCD Indication to show CO2 concentration
| Specification | |
| CO2 Measuring method | NDIR Sensor |
| Temperature / Humidity Sensing element |
CMOSens sensor |
| Load Resistance | 4~20mA Current output: max. 500Ω |
| 0~10V Voltage output: min. 600Ω | |
| A / D Resolution | 15 bits |
| Output Response Time | <200 ms |
| RS485 | RS485 MODBUS RTU : N81、N82、O81、E81 Format |
| Baud Rate | 2.4K、4.8K、9.6K、19.2K、38.4K、57.6K、115.2K |
| RS485 Address | 1~255 |
|
Display Type |
CO2 with Temperature and Humidity / CO2 |
| CO2 Sampling Time | 1 second |
| Temperature / Humidity Sampling Time |
1~10 seconds available |
| CO2 Measuring Range | 0~2000ppm or 0~5000ppm (RS485 communication required for 0~10000ppm) |
| Operating Temperature and Condition |
Temperature : -10~50°C |
| Humidity : 0~100% RH (non-condensing) | |
| CO2 Measuring Accuracy | ±70ppm |
| Temperature / Humidity Measuring Accuracy |
±3%RH (10~90%RH) (at 25°C)，±0.4°C (at 25°C) |
| (power supply 24VDC, operating temperature at 25°C) | |
| Backlight LCD Ind.ication | Green : 0~600ppm |
| Blue : 601~1000ppm | |
| Orange : >1001ppm | |
| (other LCD colors available on request) | |
| Power Supply | DC 24V |
| Current consumption | DC 50mA |
| Housing | ABS |
| Dimensions | Length 135mm x Width 85mm x Height 40mm |
-
