外圓磨床

磨床,外圓磨床,grinder, cylinder grinding machine,

#磨床#外圓磨#grind#cylinder

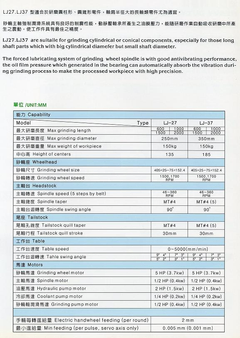

Capability
Model\Type	LJ27	LJ37
Max.grinding length	600/1000	600/1000
Max.grinding length	1500/2000	1500/2000
Max grinding diameter	250mm	350mm
Max weight of workpiece	150kg	150kg
Height of centers	135	185
Wheelhead
Gringding wheel size	405×25~75×152.4	405×25~75×152.4
Grinding wheel speed	1500,1700RPM	1500,1700RPM
Headstock
spindle speed(5 steps by belt)	46~360RPM	46~360RPM
Spindle taper	MT#4	MT#4(5)
Spindle swing angle	90°	90°
Tailstock
Tailstock quill taper	MT#4	MT#4
Tailstock quill stroke	30mm	30mm
Table
Table speed	0~5000mm
Tahle swing angle	5°,4° / 7°,3°	9°,4° / 7°,3°
Tahle swing angle	5°,2° / 3°,1°	5°,2° / 3°,1°
Motors
Grinding wheel motor	5HP(3.7kw)	5HP(3.7kw)
Spindle motor	1/2HP(0.4kw)	1/2HP(0.4kw)
Hydraulic pump motor	2HP(1.5kw)	2HP(1.5kw)
Coolant pump motor	1/4HP(0.2kw)	1/4HP(0.2kw)
Grinding pump motor	1/2HP(0.4kw)	1/2HP(0.4kw)

Electric handwheel feeding(per round)	2mm
Min feeding(per pulse,servo axis only)	0.005mm(0.001mm)

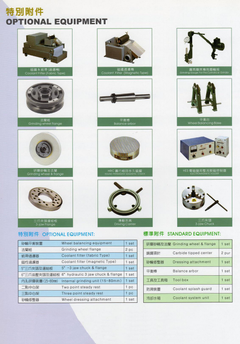

Standard Accessories：

Grinding wheel & flange (1 set)

Dressing attachment (1 set)

Balance arbor (1 set)

Coolant system unit (1 set)

Tool box (1 set)

Carbide tipped center (2 pcs)

Optional Accessories：

Coolant filter

3 Jaw chuck

Internal grinding unit

Steady rest

Wheel balancing equipment

3 Jaw flange
