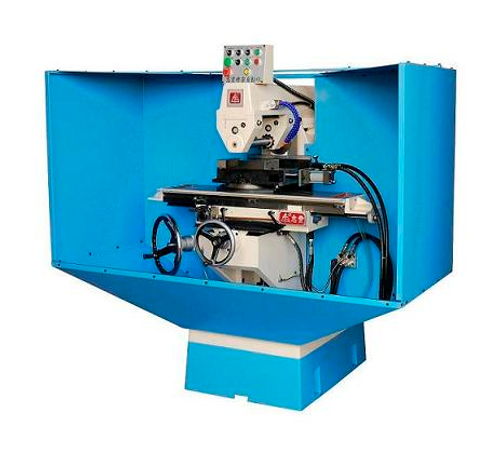

剖溝專用機 CF-1230C
www.lianjeng.com sales@lianjeng.com
www.lianjeng.com
sales@lianjeng.com
|
Models (CF-1230C) |
||
|
Table |
||
|
Working surface(length × width) |
1000×230mm |
|
|
Table travel(x/y/z) |
500×230×385mm |
|
|
T-slots |
16mm×3 |
|
|
Horizontal Spindle |
||
|
Spindle nose |
N.T.#40 |
|
|
Spindle speed(6 steps)R.P.M |
50,120,210,320,470,1180(60Hz) |
|
|
40,100,170,260,390,980(50Hz) |
||
|
Distance from spindle center to table top |
0-470mm |
|
|
Distance from spindle center to ram bottom |
115mm |
|
|
Motors |
||
|
For horizontal spindle |
1.5KW(2HP)-4P |
|
|
For table feed |
1.5KW(2HP)-4P |
|
|
For cutting fluid pump |
0.1KW(1/8HP)-4P |
|
|
Size of machine |
||
|
Net weight |
1,000kg |
|
|
Dimensions of packing case |
1150×1150×1670mm |
|
Standard Accessories: Optional Accessories:
Coolant device 1 unit Hydraulic swivel type milling vise(6")
Auto lubrication system 1unit Hydraulic chuck
Cutter arbor 1 pic
Cutter sleeve 1 set
Adjusting tool & too box 1 set
-
